  • Impeller Pump Repair Kit for Yanmar Marine 1GM , 1GM10

Impeller Pump Repair Kit for Yanmar Marine 1GM , 1GM10

SKU:
$19.00
$19.00
Unavailable
per item

Fits Yanmar Models 1GM ,1GM10 with pumps 128170-42000 ,128170-42200


This uses a 3 bolt cover.

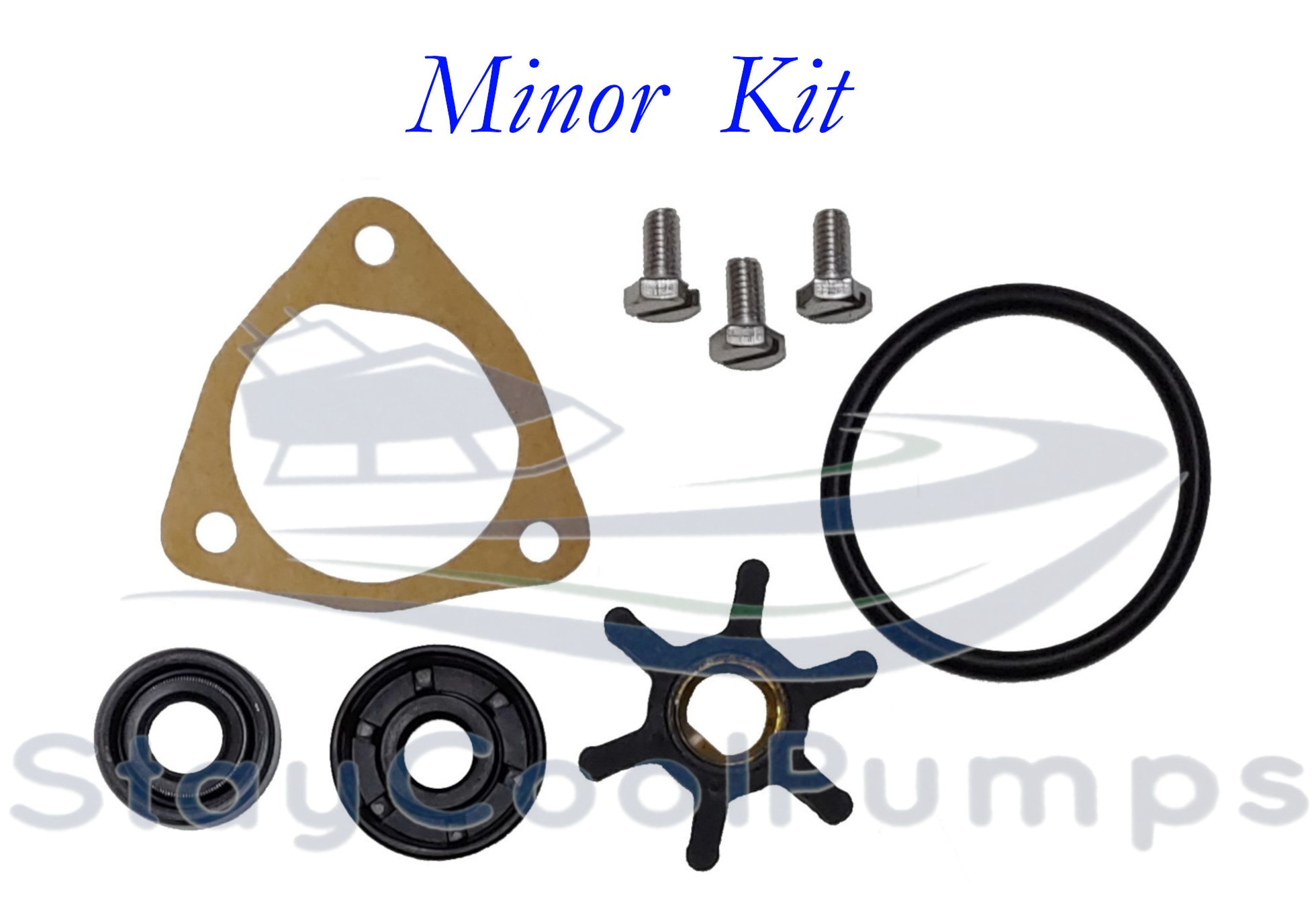

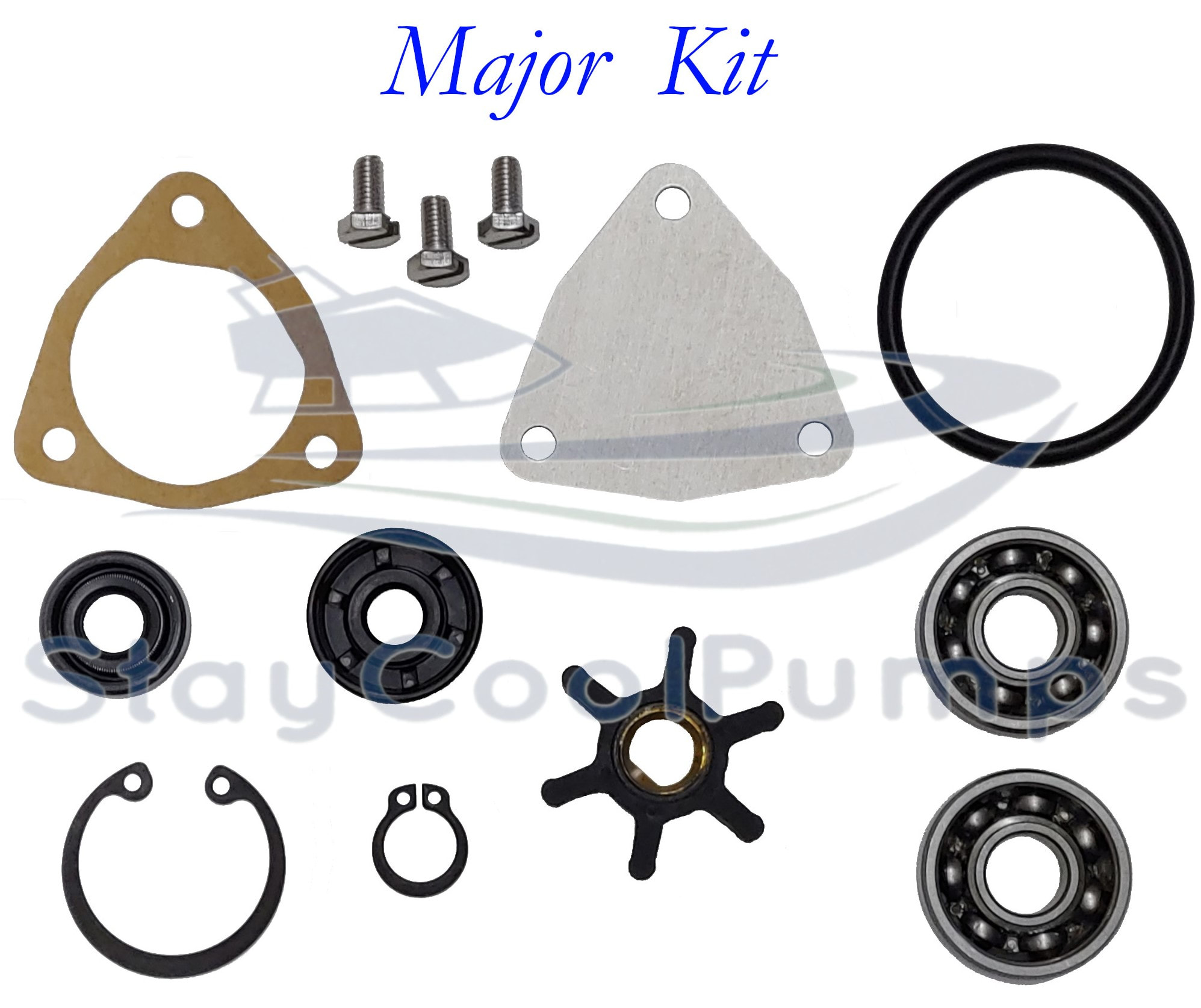

Aftermarket Parts Replace:

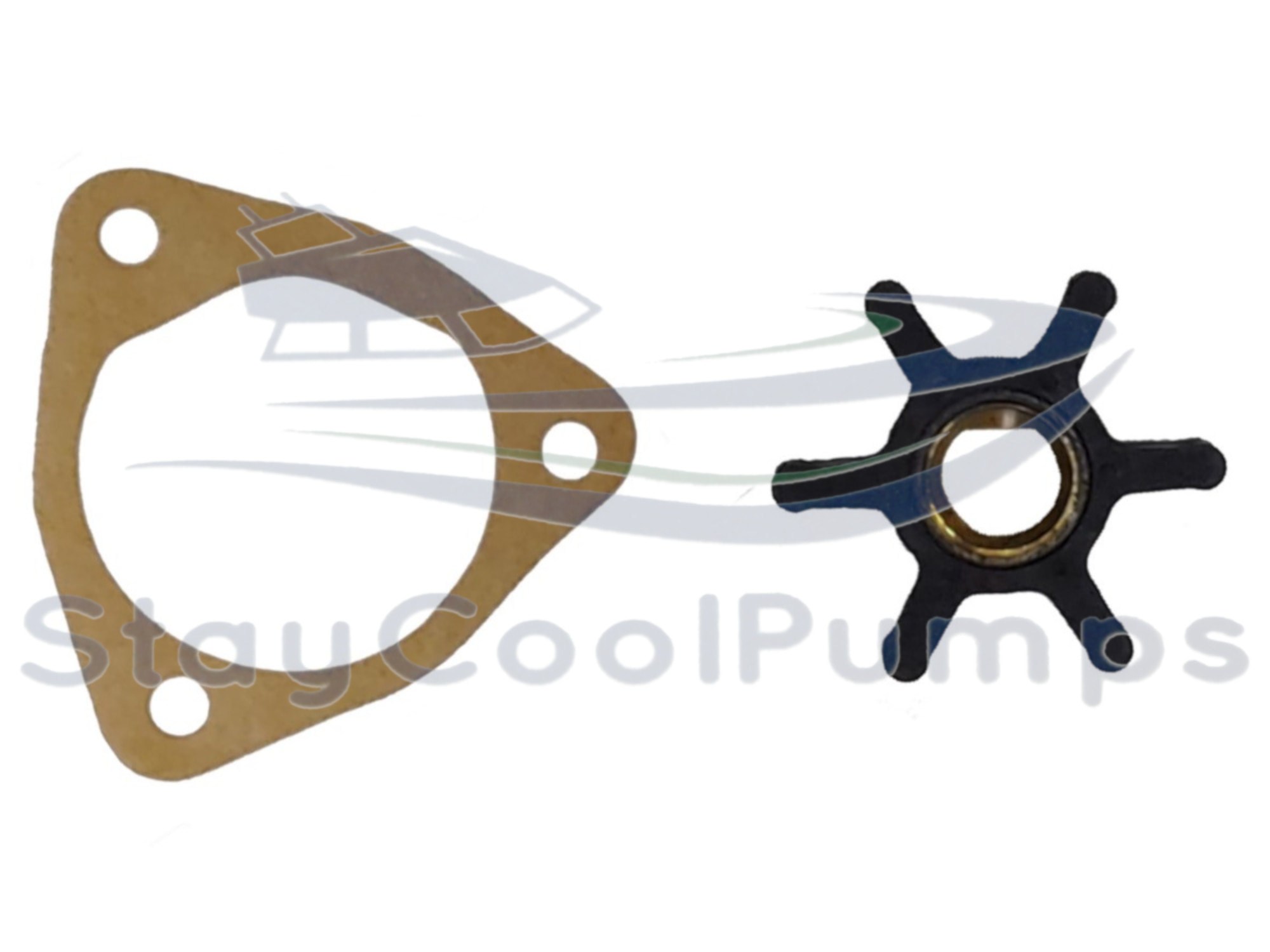

Impeller- Yanmar 128176-42070 & 128176-42071,  Sierra 18-8951,

Gasket- Yanmar128170-42090, Sierra 18-56602

Cover with Screws- 128170-42080 (optional),

(2)Bearing- 24101-060004 (optional),

Water Lip Seal (optional),

Oil Lip Seal (optional),

Retaining Ring (optional),

Retaining Ring (optional),

Mount o-ring (optional),


Impeller Specs:

Diameter: 32mm (1-1/4")

Width: 12mm (15/32")

Shaft: 8mm (5/16") single flat ( D drive )

6 Blades
