Major Repair Kit Replaces Sherwood 23977 SS Plate
SKU:
$111.95
$111.95
per item
New Major Repair Kit
Replaces Sherwood: 23977
Fits pumps: G1009-01 , G1009 , G26-01 , G4 , G45-1 , G5 , G5-1 , G50 , G7 , G7B , G8 , G45-2 , G46 , G55-2 , G56 , G85 , H85 , K90 , L10B , L80 , M70 , M71 , M71-01 , G-1009-01 , G-1009 , G-26-01 , G-4 , G-45-1 , G-5 , G-5-1 , G-50 , G-7 , G-7B , G-8 , G-45-2 , G-46 , G-55-2 , G-56 , G-85 , H-85 , K-90 , L-10B , L-80 , M-70 , M-71 , M-71-01
Note: When using the Minor Kit 23976 or Major Kit 23977 for the M70, M71, M71-01, also replace the 10514 Lip Seal, which is not included in these kits.

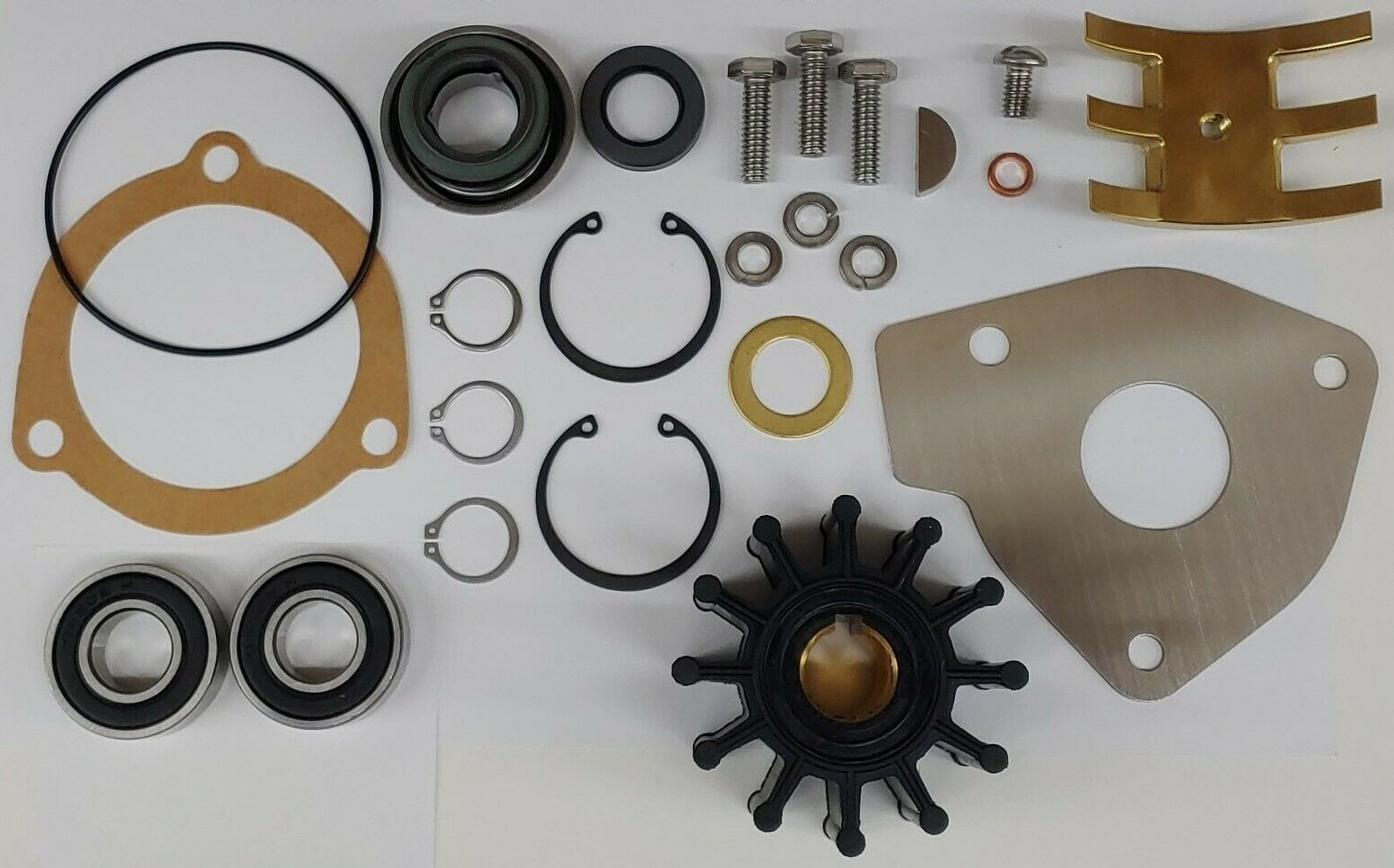

Kit includes:
1ea 10615 Impeller
1ea 12231 O-Ring
1ea 12855 Gasket
1ea 12859 Seal
3ea 04258 Snap Ring
1ea 04432 Key
1ea 04264 Washer
2ea 04259 Snap Rings
2ea bearing
1ea 25150 end plate
1ea 10929 cam
1ea 10515C cam screw kit
3ea 12857 screw
3ea 12710 lock washer
1ea 5133 Spacer
